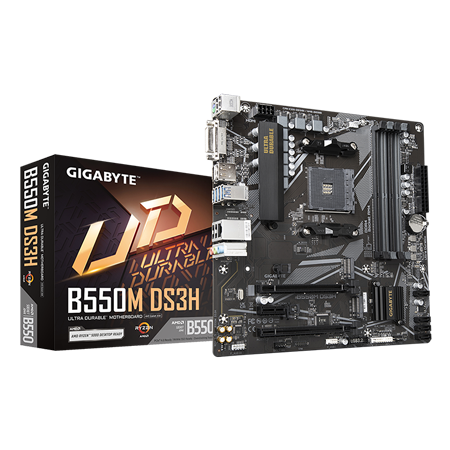

Gigabyte B550M DS3H AMD Motherboard
Brand

Gigabyte
Chipset

AMD B550
Socket type

AMD AM4
Warranty

03 Years

Gigabyte B550M DS3H AMD Motherboard

SKU: Gigabyte B550M DS3H AMD Motherboard
Out of stock

රු45,000.00

Add to Wishlist
Add to Wishlist
  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear DisplayPort, HDMI & DVI Support
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design

Out of stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Categories: , ,

Description

Gigabyte B550M DS3H Specification –

CPU
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Chipset
  1. AMD B550

Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

 Integrated Graphics Processor:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Wireless Communication module

 –

Expansion Slots

 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:

  1. Supporting PCIe 3.0 x1 mode

1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

  1. Supporting PCIe 3.0 x1 mode

Storage Interface

 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

  1. AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

  1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

    1. Support for RAID 0, RAID 1, and RAID 10

USB

 CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 2 x M.2 Socket 3 connectors
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  12. 1 x Clear CMOS jumper

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

I/O Controller
  1. iTE® I/O Controller Chip

H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install

Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8125 Gaming LAN Bandwidth Control Utility

Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm

Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
